Whatsminer Liquid Cooled Mining Machine M30S 88T M30S+ 100T Transformation Oil cooled miner

Product Description

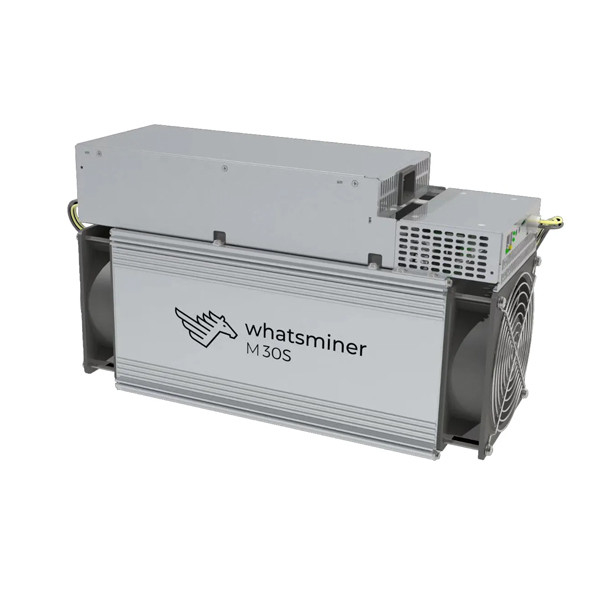

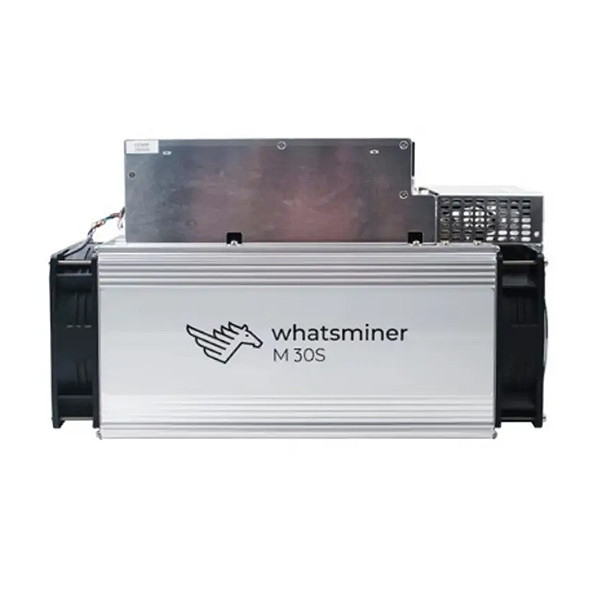

Whatsminer M30S 88T M30S+ 100T liquid-cooled mining machine transformation Oil cooled miner

M30S 88T:

Product Description:

On December 7, 2019, Shenzhen Bit Micro released a video of the operation of the Whatsminer M30S Bitcoin mining machine, announcing that the new generation of Whatsminer M30 was successfully launched. The Whatsminer M30S 88T has a rated power consumption of 3344W and a computing power of 88T. , the power consumption ratio is 38J/T

The overall appearance is the same as that of the M20S-68T. It is still a single-tube design, with an appearance size of 390x150x225mm and a weight of 10.5kg. The difference is that the power supply is replaced with a flat style, which reduces the height of the whole machine by 15mm. At the same time, the weight of the whole machine is lighter than that of the M20S-68T. 0.9kg, the noise level of the whole machine is 85.7dB during normal operation, and the frequency will be automatically adjusted within half an hour after starting up.

Fan:

The whole machine uses two 14038 12V 7.2A fans, one in and one out, for heat dissipation. The front fan uses a 6-pin flat interface, and the rear fan uses a 4-pin 4P interface.

Control Board Power Supply:

Whatsminer M30S-88T uses the H3 control board, which is connected to the computing power board through the connecting line of the adapter board. The panel interface and buttons have not changed. The control board shell is also marked with the model, computing power, SN code and Network card MAC address and other information, a standard P21-GB-12-3300 power supply, and use a 16A power cord to supply power.

Hashboard:

The chassis is made of aluminum alloy die-casting, and the computing power board is inserted and fixed through the groove, and the arrangement is tight. There are 3 built-in computing power boards. Each computing power board has 148 Samsung 8nm ASIC chips, a total of 444 chips, and the computing power board Both sides are covered with heat sinks, coated with thermal grease in the middle, and reinforced with 26 spring screws. The mining machine runs stably during long-term tests, and the fluctuations in computing power, power, and temperature are small. The improved power supply reduces the size. The weight is reduced, which brings certain convenience to the operation and maintenance of the mine.

M30S+ 100T:

Product Description:

Whatsminer M30S+ 100T is manufactured by Whatsminer mining machine. The manufacturing process is excellent to ensure the quality and service life. The appearance design is fashionable and simple with texture. It adopts an all-in-one model to reduce the power loss during the conversion process. The working standard computing power is 100T, the power consumption ratio is 34w/T, and the power consumption is 3400w. The most attractive thing is its value for money price and the extended warranty period. Now the market is sluggish and small computing power is gradually facing elimination. In the era of large computing power, it is generally a cost-effective choice.

Basic Configuration:

The new Whatsminer M30S+ has a rated computing power of 100TH, adopts the SHA-256 algorithm, and consumes 3400W of power. It is equipped with a 3800W-220V-240V power supply, eliminating the 9-pin cable and making it easier to plug into a socket. The size of the M30S+ is 390mm*155mm*240mm, weight 12.7kg, the size difference from M20S is that the height of PSU is lower.

Fan:

The built-in fan system generates peak hash power while keeping the machine cool.

Liquid Cooling Retrofit:

In view of the current situation, compared with air-cooled mining, it is recommended to choose a quieter, safer and more stable liquid cooling system for mining activities. Compared with the air-cooled system that comes with the machine, liquid cooling is not only stable, safe and quiet, but also provides protection. The role of the machine is that the residual value rate of the machine is high. Although the Whatsminer machine has limited overclocking in the production design, it also fully supports liquid cooling transformation. The overclocking cannot be higher than 5%, otherwise the power supply needs to be transformed, but in general After the liquid cooling transformation, it will greatly reduce the mining risk and increase the income. At present, the company supports the liquid cooling transformation of any model, and also provides the transformation plan to guide the sale. If you have any questions, you can go to the homepage of our website to learn about the transformation details or leave a message contact us.

Profitability:

Judging from the current machine price and electricity bill, the annual net income of 88T and 100T machines is $1268 and $1580 respectively, and the payback time is about 607 and 644 days respectively. This is the income in the current bear market. It is also one of the stable models that are currently preferred for high-priced electricity bills to resist risks. As the currency price rebounds in the future or changes to liquid-cooled mining, the benefits will be even more considerable.
Note: The data is always changing, whether it is the cost of the mining machine or the price of Bitcoin, and also consider your local electricity bill. The above data is for reference only, we are not responsible for any loss during the mining process.
If you need to get the latest profitability, you can use a professional mining calculator to calculate, or you can contact our business to help you with an approximate calculation.
