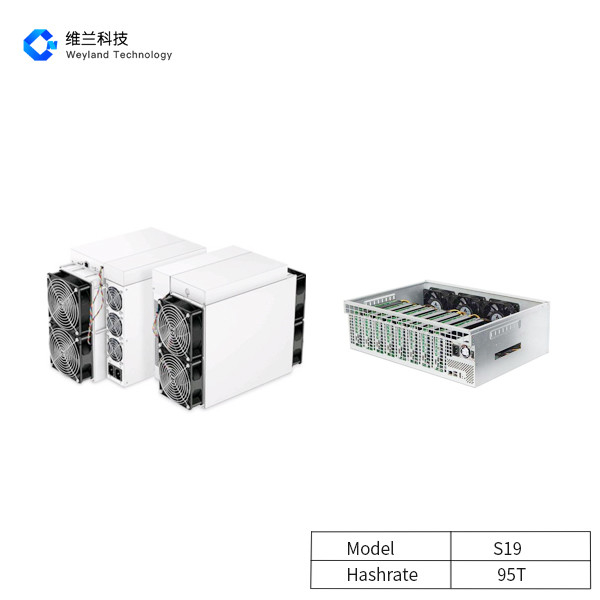

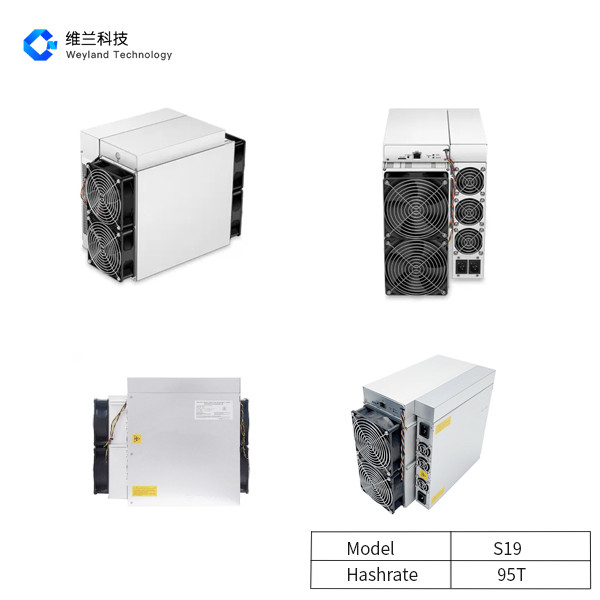

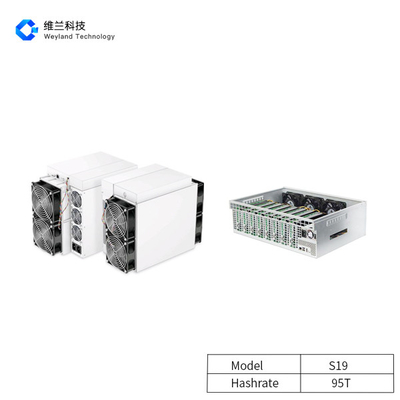

BTC Asic Antminer S19 95Th/s four fan structure for Bitcoin mining

Product Description

Bitcoin S19 machine mining Bitmain Antminer BTC Miner 95Th/s SHA256 240-Ca 34J/T:

Antminer S19, rated computing power: 95TH/s; energy efficiency ratio: 34J/TH±5%; wall power consumption: 3250W±5%.

It adopts an aluminum alloy profile electromechanical integrated design, parallel four-fan structure, bare metal size is 400*195.5*290mm, and the net weight of the whole machine is about 14.2 kg. The shape is square, simple, and regular, and the space is saved to the greatest extent.

The power supply model of Antminer S19-95T is the newly designed APW12, which has a higher conversion rate and stronger power than the S17 power supply APW9.

The power consumption of the S19 wall is 3250W±5%, and it is necessary to ensure that the socket for the power supply to the miner is greater than 10A. Therefore, the quality requirements of the power cord are very high.

After the power is turned on and the network is behind, the IP address of the miner is popped up through IP REPORT, and the IP address is entered. The default user name and password of the miner are "root".

Enter the background configuration page and fill in the corresponding parameters.

actual data:

The measured ambient temperature is 26 degrees Celsius, and the actual operating power consumption is 3175.7W, which is in line with the official power consumption.

Noise: 83.7db

Air inlet: 32.5℃

Air outlet: 70.3℃

Hashrate: The 24-hour average hashrate is 95.8T. The computing power curve oscillates stably between 92T and 100T.

Summary: The computing power of Antminer S19-95T on the local user panel and mining poolside slightly exceeds the officially announced computing power index of 95T. The 24-hour average computing power of the pool is 95.07T, and the measured energy efficiency ratio is 33.1J/T, which is lower than the 34.5±5%J/T power consumption ratio marked on the official website. On the whole, it is in line with and better than the official propaganda data. It can be said that it is a conscientious product and a nugget weapon to deal with halving.

Q: About the power supply voltage

A: The default voltage in China is generally 220V. Since each country or mine has different voltage standards, please explain the power requirements before purchasing. If you need to match the adapter according to the actual power supply, please buy it in the market

We have 2 BTC mining farms built by ourselves, have our own professional operation and maintenance personnel, and cooperate with multiple maintenance centers. Before the mining machine is shipped to you, we will test the mining machine and send the test video to you to ensure that the mining machine in your hands can operate normally and minimize the loss of transportation.
