D1 Microb Whatsminer DCR Asic Miner 48TH/s 16nm FinFET Compact Chip

Product Description

D1 Microb Whatsminer DCR Asic Miner Decred ASIC Mining Machine Blake256 r14 mining POW+POS :

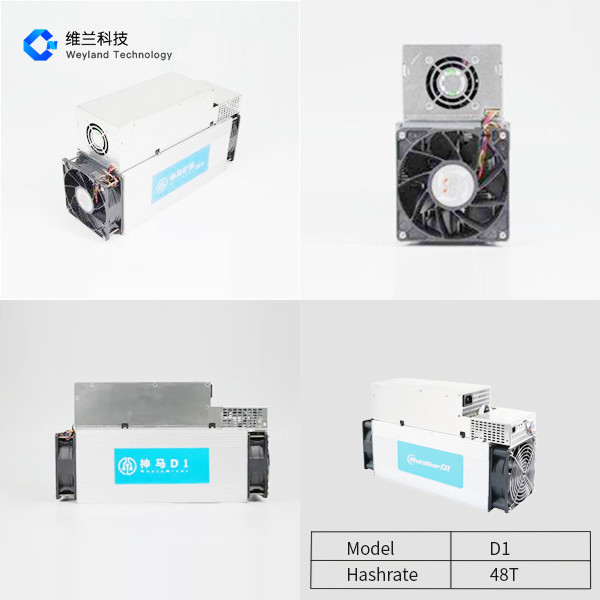

Whatsminer D1 mining machine adopts an all-in-one design, the power supply, and the mining machine are integrated together, and the exposed wires are only the power cables of the fan and the control board

Whatsminer P10 has a rated power of 2250W and uses 2 6.4A fans to provide cooling for the miner

External: Whatsminer D1 control board provides Ethernet interface, running status indicator, system reset button, IP address reporting button, TF card slot, air inlet fan interface, and online MAC address

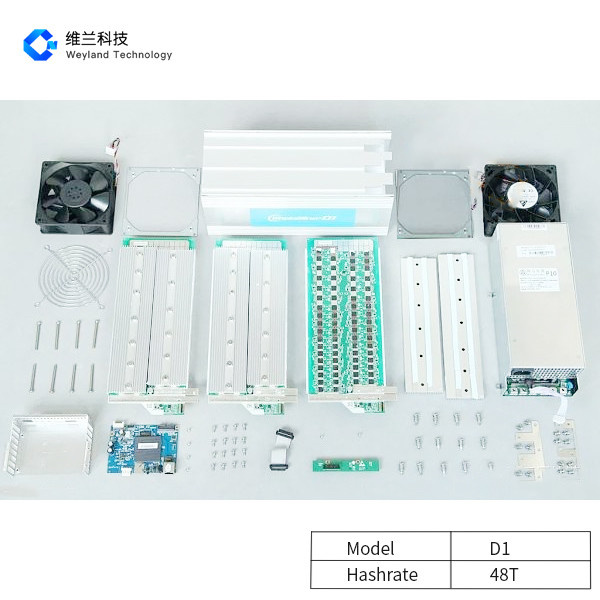

Internal: It consists of 3 pieces of computing power. There are heat sinks on the front and back of the computing board. Each computing board contains 70 chips code-named QA5100, forming 210 Blake-256 r14 DCR mining with a computing power of 48T. machine

Test Data:

Outdoor ambient temperature: about 20°C

After power on, the fan will run at full speed, and the standby power consumption will display about 28W after running normally for a while.

Noise: 77db

When the miner is not running, the noise mainly comes from the power supply, and the fan noise will be more obvious after the miner starts mining.

After running for about ten minutes, the test noise level is between 79-80 decibels, and the power consumption of the whole machine is about 2120W.

Power inlet: 20℃

Power outlet: 35℃

Test mining machine temperature: 21.4 degrees on the air inlet side; 40 degrees in the middle of the mining machine; 33 degrees in the tail; 60 degrees in the air outlet.

1. Whatsminer D1 adopts the all-in-one design to improve the efficiency of the machine, and the power consumption ratio of 45W/t is further improved compared to the parameters released by the official earlier.

2. Whatsminer D1 has strong performance, the average computing power of the whole machine is 48T, the power consumption is within 2200W, and the comprehensive unit computing power consumption ratio is 45W/T. It is the DCR mining machine with the largest single machine computing power and the best power consumption ratio on the market. .

3. Whatsminer D1 maintains the fine tradition of M10, which is "stable". The mining machine has been running stably during the long-term test, with stable computing power, stable power, and constant temperature, without any faults and problems.

We have our own mine, have our own operation and maintenance personnel, and cooperate with multiple maintenance centers. Before the mining machine is shipped to you, we will test the mining machine and send the test video to you to ensure that the mining machine in your hand can operate normally and minimize the loss of transportation
