S19 95T air-cooled mining machine to liquid-cooled mining bitcoin mining machine BTC/BCH/BSV 34.5J/T Oil cooled miner

Product Description





Bitcoin Miner S19 95T Air Cooled Mining Machine BTC/BCH/BSV Convertible Liquid Cooled 34.5J/T Oil cooled miner





Bitmain's Antminer S19 series of bitcoin mining machines will be on sale in 2020. The star product in the S19 series: S19 95T stands out among



many bitcoin mining machines with excellent cost performance. And the mining machine has been certified by various countries around the world,



and it is very convenient to export.



Up to now, the price of Bitcoin has fallen, and many small and medium-sized mining machines with low hash rates have been shut down, but the



S19 has the advantage of a high hash rate of 95T and power consumption of only 3250W, which makes it possible for the price of Bitcoin to fall.



it can continue to mine Bitcoin and generate good income. It is one of the best Bitcoin mining machines to survive the bear market.





Detailed features:





Hardware Configuration:

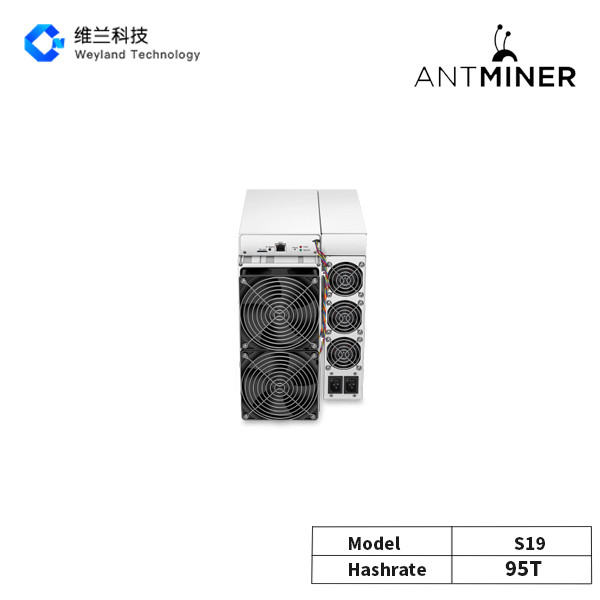

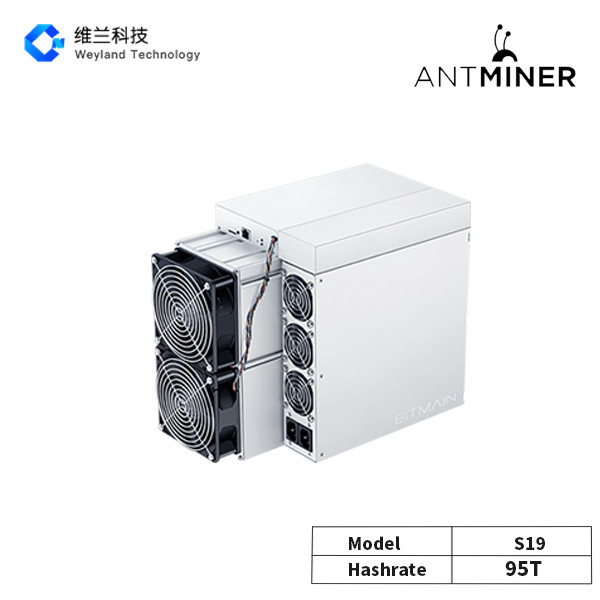

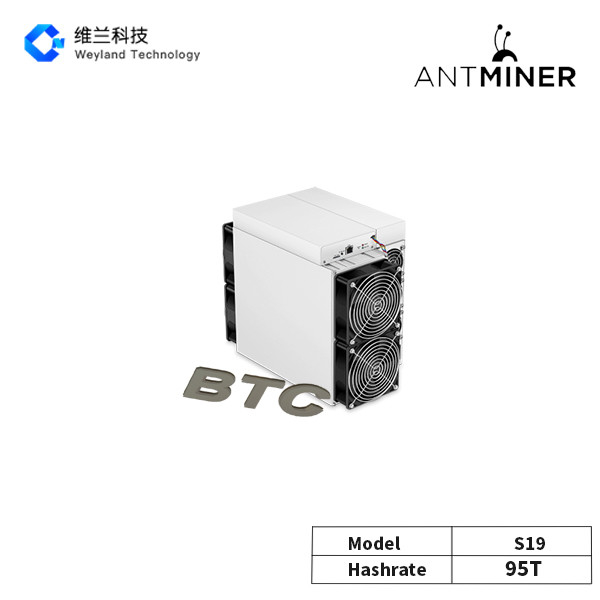

The body of the Antminer S19 95T is made of aluminum alloy, and the power supply and the machine are designed in an integrated manner,



making the whole body more secure and tidy; the bare metal size is 400*195.5*290mm, and the net weight of the whole machine is about 14.2 kg.



The miners can be placed horizontally or erected according to the mining environment, which helps maintain miners' safety.



The RJ45 Ethernet 10/100M network connection method is adopted, which is suitable for the network connection method in most regions.



The miner adopts a parallel four-fan structure (that is, 4 fans), which helps the miner to dissipate heat during operation and keeps the miner at the



best operating temperature. Compared with the 40mm fan of the S17 series power supply, the S19 power supply fan uses a 60mm fan, the speed



of the fan is reduced, and the heat dissipation channel is enlarged, thereby reducing the noise and reducing the frequency of power failures.



Chip:



There are 3 computing power boards inside the S19 fuselage, and 228 chips use the fully customized 7nm BM139 chip from Bitmain, which is



Bitmain's third-generation machine. Compared with the Antminer T17+ 55TH, which also uses a 7nm chip, the S19 95 Th/s nearly doubles the



hash rate, while the power consumption only increases by 500 (the power consumption of the T17+ 55TH is 2750W). In terms of energy efficiency



ratio, it leads by nearly 50%.



The miner has turned on the "secure boot" setting function and disabled "root permission" in order to prevent the virus in the firmware from



spreading, causing damage to the S19, and endangering the interests and safety of miners.



power supply:

The S19 95T mining machine comes with its own power supply, the power supply model is APW12, which has a higher conversion rate and



stronger power than the S17 power supply APW9. The required input voltage is 220V, and a 10A socket and a 10A power cord are required. The



power AC input frequency range is 47 to 63 Hz. If the wrong current is input, it may cause damage to the machine. When miners buy this



shutdown, they should pay attention to the fact that the Antminer is not equipped with a power cord, and it is necessary to prepare a power



cofwith good quality in advance.

Environmental requirements:

In view of the squeamish characteristics of ant mining machines, the S19 series has good high and low-temperature adaptability and is not easy



to be dropped due to changes in ambient temperature. When the altitude is 0m, the working temperature can reach up to 40℃. At the same time,



the mining machine can operate at an altitude of 900 meters to 2000 meters, and when the altitude increases by 300 meters, the maximum



working temperature of the mining machine is reduced by 1°C.




Profitability:



Based on the current coin price and miner price, the electricity cost is assumed to be $0.06

Miner cost: $2648.77

Mining pool pumping: 2.5%

Current price: $23,456.04

According to the current computing power of the entire network is 196.31EH/S, the mining difficulty is 28.17TH.

One S19 95T mining machine can get you 0.000420 BTC per day, the electricity bill you need to pay is: $4.59, and the net income you can get



per day is: $5.57

The S19 95T can produce 0.153300 bitcoins per year. This means that after removing the electricity cost of $1675.79, your annual net benefit is



$1922.32, and the payback time is around 503 days.

Note: The data is always changing, whether it is the cost of the mining machine or the price of Bitcoin, or the exchange rate, and also consider



your local electricity bill. The above data is for reference only.

If you need to get the latest reference profit, you can use a professional mining calculator to calculate, or you can contact our business to help you



make an approximate calculatio





Investors who are suitable to buy:



1. With very little production capacity and a large amount of purchase demand in the market, even if the currency price falls sharply, it is not easy



to lose money.



2. Investors who have been engaged in mining for a long time: models with a low power consumption ratio make mining more resistant to risks.





About S19 95T Retrofit Liquid Cooling:



From May to July 2022, the price of BTC has shrunk seriously, and the computing power of the entire network has also been delisted from



241EH/S to about 204EH/S, a 15% decrease in the base, because the electricity cost is in the standard mining farm of 0.04~0.07 US dollars,



Small and medium-sized mining machines can no longer be turned on. According to the current Bitcoin price of 19,000, if it falls by 20%, large



computing machines like the S19 will also face the risk of shutdown.



Therefore, in addition to waiting for the overall reduction in the price of mining machines, miners friends need to consider lowering the power



resources on the one hand, and also need to consider the adjustment of the air-cooled mining solution to liquid-cooled mining.





So can the S19 95T be changed from air cooling to liquid cooling? The answer is yes.

What will happen after the renovation?



one,



The transformed S19 solves the noise problem to the greatest extent and realizes silent mining. It can be transformed from a large mine operation



to a family personal mode without disturbing your life due to noise.



principle:



The traditional air-cooled heat dissipation method requires the cooling fan of the mining machine itself, plus negative pressure fans, water curtains



and other combined heat dissipation, in order to try to achieve the operating environment temperature required by the mining machine. Not only a



lot of noise will be generated during the operation of the mining machine, but also the noise will be aggravated when the negative pressure fan is



running.



Liquid cooling is a combination of water cooling and oil cooling. It does not require cooling fans, fans, and water curtains to dissipate heat.



Instead, the flow rate of the liquid is used to take away the heat from the operation of the mining machine, which is a real source of noise and



sound. isolation. If there are rivers, reservoirs, etc. in your mining environment, you can also ignore the noise caused by the circulating cooling



water system.



two,



The mining machine runs stably, and it is not easy to disconnect or decrease the computing power. At the same time, it can achieve 5%~15%



hash value overclocking



principle:



The specific heat capacity of liquid is higher than that of air (for example, in the same temperature environment, a bath can cool people faster



than a fan) and can absorb a lot of heat.



By adjusting the flow rate of water, the temperature of the miner can be kept within a small range. Effectively suppress the sudden temperature



rise, avoid the high temperature protection of the mining machine, and realize the stable operation of the mining machine. At the same time,



adding specific silicone paper to control the temperature can achieve 5%~15% overclocking operation of the mining machine.



The special oil and water can not only be used permanently, but also provide better anti-oxidation and dust-proof protection for the mining



machine hardware, reducing the unstable computing power or delisting caused by the depreciation and loss of the mining machine hardware, and



reduce the mining machine's maintenance costs.



How to restore the miner?



When you no longer consider liquid-cooled mining or want to sell the miner, you can simply restore the fan of the miner by ultrasonic cleaning in



the factory and it can run normally.





Cost Reflection of Retrofitting Liquid-Cooled Miners



The costs required for the S19 to transform the liquid-cooled mining machine are mainly: special silicone paper, coolant (transformer oil/insulating



oil), boxes for placing the liquid-cooled mining machine, and labor costs, etc.



The specific cost of the transformation of the liquid-cooled mining machine depends on the specific transformation situation, You can consult our



business for details.





Specification



product name	S19 95T Liquid Cooled
Brand	Antminer
Algorithm | Cryptocurrency	SHA256 | BTC/BCH/BSV
Model	S19
Hashrate, TH/s	95TH/S
Power on wall @25°C, Watt	3250 ±5%
Power efficiency on wall @25°C, J/TH	34.5 ±5%
Production currency	BTC/BCH/BSV
material	Metal
weight	14.2KG
Machine size	40cm*19.55cm*29cm(length*width*height)
Networking connection mode	RJ45 Ethernet 10/100M
Power supply AC Input voltage, Volt(1-1)	200~240
Power supply AC Input Frequency Range, Hz	47~63
Power supply AC Input current, Amp(1-2)	20(1-3)
Operation temperature,°C	0~40
Storage temperature,°C	-20~70
Operation humidity(non-condensing) , RH	10~90%
Operation altitude, m(3-1)	≤2000
